ABchimie746 E UV  is a soft, permanent and transparent new conformal coating. It cures under UV light and it is designed to protect PCBAs from harsh environments. ABchimie746 E UV  benefits from dual-cure technology (UV/humidity) which allows reticulation in shaded areas.

ABchimie746E UV LED may be applied by brush, pad printing, spray machine and of course selective coating machine which is the ideal way to apply. The low viscosity of our system permits to limit the thickness around 80 microns. ABchimie746E UV LED is compliance with REACH and RoHS regulations.

 If you want a certificate, please contact us


  • By brush
  • By selective deposit machine
  • By spray
  • By dip

Available in different versions:

  • ABchimie746 E UV, UV varnish (dual cure), viscosity of 60 cSt at 25°C
  • ABchimie746 E UV LED, LED varnish (dual cure), viscosity of 60 cSt at 25°C

Available packaging: in 5L

Cleaning solvent (non dry varnish) : SND, DNS

Recommended stripper (dry varnish): DVP


  • Ultra fast UV curing
  • Polymerization of shadow areas with moisture
  • Excellent adhesion under harsh weather conditions
  • Range temperature of – 55°C at + 150°C
  • Heat-sealable varnish
  • Mold resistance
  • Excellent dielectric properties
  • reduced floor space compared to solvent-based products
  • speed process, increase productivity
  • Low viscosity for use in selective coating machine (usable in head SC200, SC280, SC 300 and SC400)

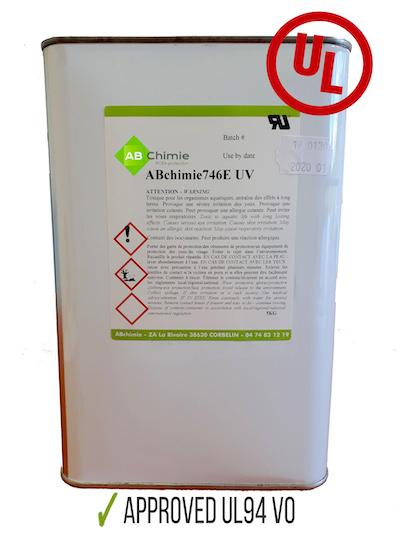

  • Approved UL94 V0 (QMJU2-E308681)
  • Approved UL746E.

Polymérisation UV, économique et écologique
